Downstream Tasks#

Once you have trained a SHRED model, you can use it for various downstream sensing and prediction tasks. The SHREDEngine object provides a convenient interface that wraps your trained SHRED model and DataManager, making it easy to:

  • encode sensor measurements to latent space

  • forecast future latent space states

  • decode latent space back to full-state space

  • evaluate full-state reconstructions from sensor measurements against the ground-truth

Initialize SHREDEngine#

To initialize SHREDEngine, pass in a DataManager and a trained SHRED model.

from pyshred import SHREDEngine

# Assuming you have a trained SHRED model and DataManager
engine = SHREDEngine(data_manager, trained_shred_model)

Encode sensor measurements to latent space#

The SHREDEngine object provides a .sensor_to_latent() method for generating the latent space associated with the raw sensor measurements. The raw sensor measurements should have shape (time_steps, num_sensors) and the column order of sensors should match the .sensor_measurements_df attribute in DataManager.

# Raw sensor measurements (e.g., from physical sensors)
sensor_data = your_sensor_measurements  # Shape: (time_steps, num_sensors)

# Convert to latent space
latent_representation = engine.sensor_to_latent(sensor_data)

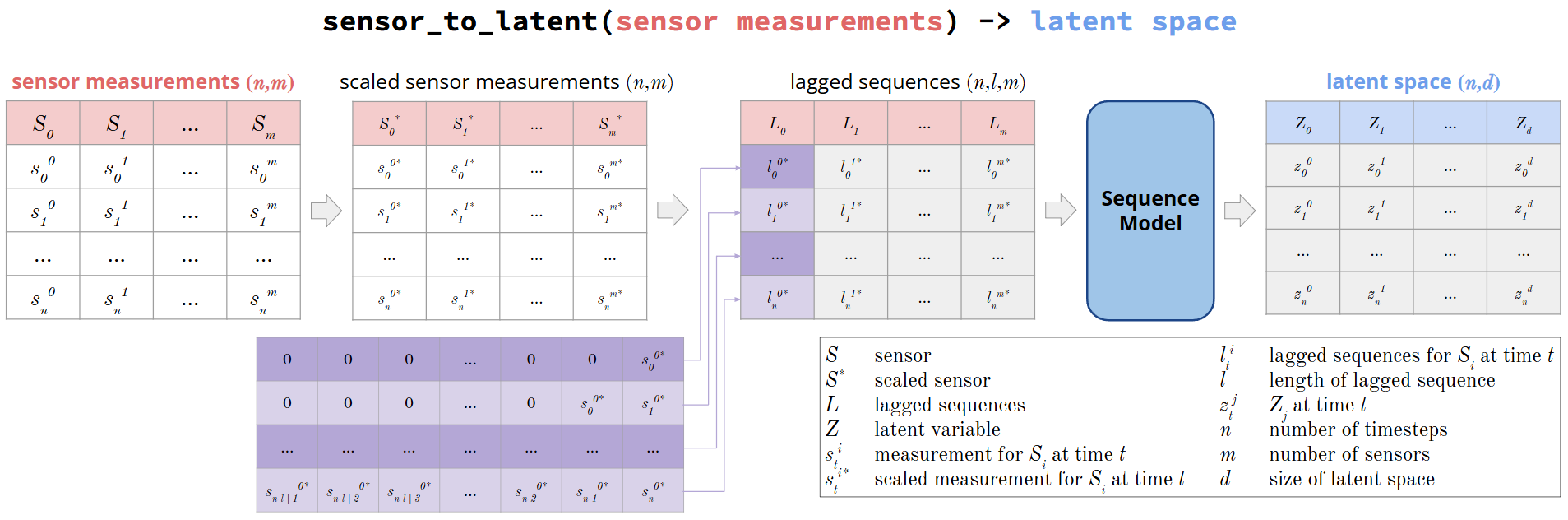

Sensor to Latent Pipeline

Figure: The sensor_to_latent method takes in raw sensor measurements, scales it, generates lagged sequences of the scaled sensor measurements, then passes it through SHRED’s sequence_model to obtain the latent space associated with the raw sensor measurements.#

Note: the lagged sequences near the start are padded by zeros because there is not enough sensor measurements to look back on.

Forecast future latent space states#

The SHREDEngine provides a .forecast_latent() method that predicts future latent states starting from an initial sequence of latent vectors. This method is available if SHRED’s .latent_forecaster is not None.

# Generate latent states from current sensor measurements
current_latents = engine.sensor_to_latent(sensor_measurements)

# Set forecast horizon (number of steps to predict into the future)
forecast_horizon = 50

# Prepare initial seed for forecasting
seed_length = shred.latent_forecaster.seed_length
init_latents = current_latents[-seed_length:]

# Forecast future latent states
forecasted_latents = engine.forecast_latent(h=forecast_horizon, init_latents=init_latents)

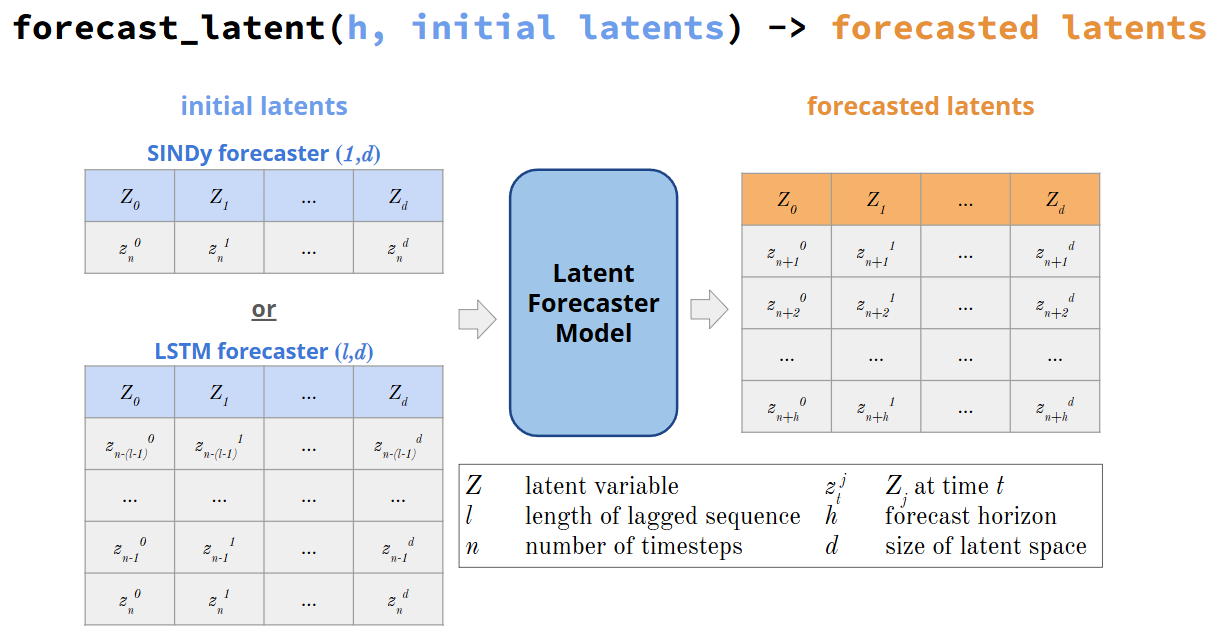

Latent Space Forecasting Pipeline

Figure: The forecast_latent method takes in a forecast horizon (number of steps to forecast into the future) and an initial latent space seed. The timesteps requried for the seed depends on SHRED’s latent_forecaster model selected. SINDy_forecaster requires only a single latent space timestep. LSTM_forecaster requires the latent space seed to be of length lags (lags set in LSTM_forecaster). The seed is passed into the SHRED’s latent_forecaster, which then forecasts the latent space h timesteps into the future.#

Decode Latent Space Back to Full-State Space#

The SHREDEngine provides a .decode() method for converting latent representations back into the full-state space.

# Convert latent representations back to full state
full_state_reconstruction = engine.decode(latent_representation)

# You can also decode forecasted latent states
forecasted_full_state = engine.decode(forecasted_latent)

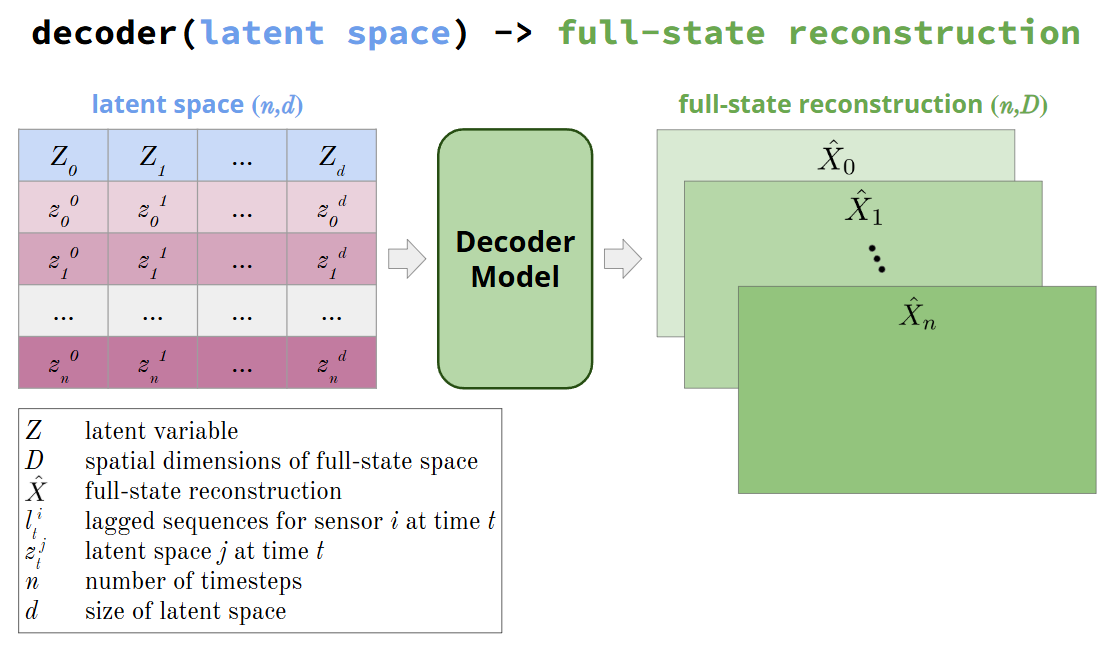

Latent Space to Full-State Space Pipeline

Figure: The decoder method takes in a latent space, passes it through SHRED’s decoder_model, and returns the full-state reconstruction of the latent space.#

Evaluate reconstructions from sensor measurements against ground truth#

The SHREDEngine provides an .evaluate() method that compares reconstructed full-state outputs (from sensor measurements) against the unprocessed ground truth. This method performs end-to-end evaluation in the physical space, automatically handling all necessary post-processing steps.

What the evaluation includes:#

  • Unscaling: Converts normalized predictions back to original scales using fitted scalers

  • Decompression: Projects back to full-state space if SVD compression was used during preprocessing

  • Dataset unstacking: Separates multiple datasets if more than one was added to the DataManager

  • Metric computation: Calculates comprehensive error metrics (MSE, RMSE, MAE, R²)

Usage example:#

# Prepare ground truth data as a dictionary mapping dataset IDs to arrays
# Each array should have shape (time_steps, *spatial_dimensions)
ground_truth = {
    "dataset_1": full_state_data_1,  # shape: (T, height, width) for 2D spatial data
    "dataset_2": full_state_data_2   # shape: (T, nx, ny, nz) for 3D spatial data
}

# Evaluate model performance
evaluation_results = engine.evaluate(
    sensor_measurements=test_sensor_data,  # shape: (T, n_sensors)
    Y=ground_truth
)

# Display results
print(evaluation_results)
#           MSE      RMSE       MAE        R2
# dataset
# dataset_1  0.123    0.351     0.245     0.892
# dataset_2  0.098    0.313     0.198     0.913
